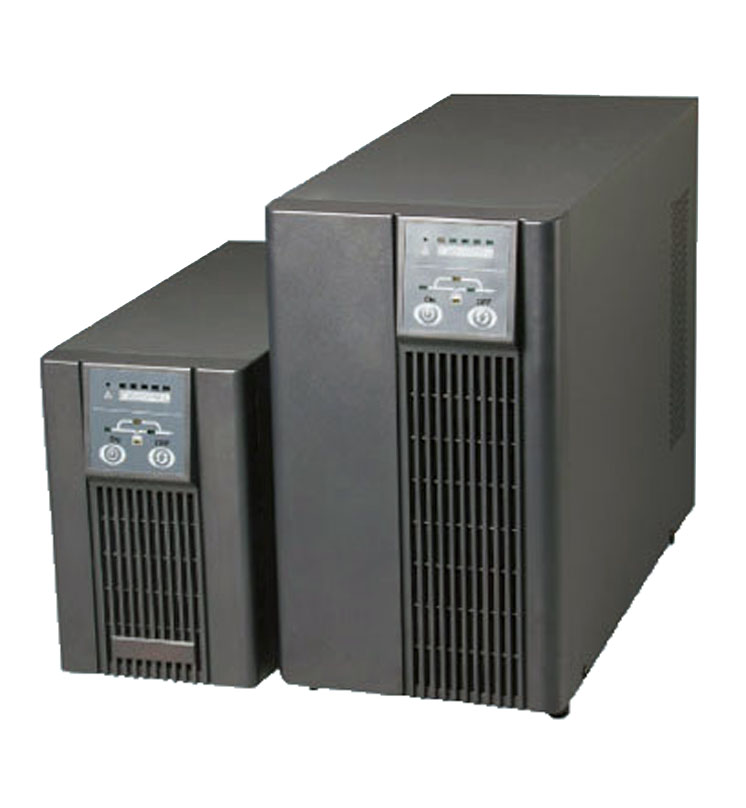

HS Series (BD)

Model

2100HS

2200HS

2300HS

2600HS

210KHS

Rated Power

VA/W

1KVA/0.8kW

2KVA/1.6kW

3KVA/2.4kW

6KVA/4.8kW

10KVA/8kW

Input

Nominal Voltage

110VAC/220VAC

220VAC

VoltageRange

60~138VAC/115~300VAC

176~276VAC

FrequencyRange

46~54Hz(default),user adjustable within 40~60Hz

PowerFactor

0.97

Output

Voltage

110VAC/220VAC

220VAC

Frequency

46-54Hz±0.2Hz(Line mode) 50Hz±0.2Hz(battery mode)

Waveform

sine wave

Distortion

3%

4%

≤2% under linear load

PowerFactor

0.9

0.8

Overload capability

108%~150%for30secends.,±150%for300ms

Current Crest Ratio

3:1

Battery

Type

Sealed, Maintenance free, Lead-Acid

Recharge Time

8hrs to90%of capacity after full load discharge

Bypass

Automatic Transfer

on overload and UPS failure

Before UPS power-on

Default "NO", user adjustable to "YES"

Transfer time

0ms;less than 4 ms from inverter to bypass and vice versa

LED/LCD Indicators

status

load level/Battery level, Battery, Utility power, Inverter, Bypass, Overload, Fault

Audible Alarm

Bypass, ON battery mode, Battery low, Overload, Fault

Acoustic Noise

At 1 meter distance

45 dBA

50 dBA

50 dBA

Communications

DB-9Port

RS-232 Serial Interface

Intelligent Slot

Options;Webpowet,As400 Card or WinPower CMC

Environmental

Operating Temperature

0-40℃

Operating Humidity

20~90% non-condensing

Weight

Net (Kg)

14/7

34/13.5

34.5/14

90/35

93/38

Dimensions

W×D×H (mm)

145*400*220

192*460*340

260*570*717



*Specifications subject to change without prior notice
