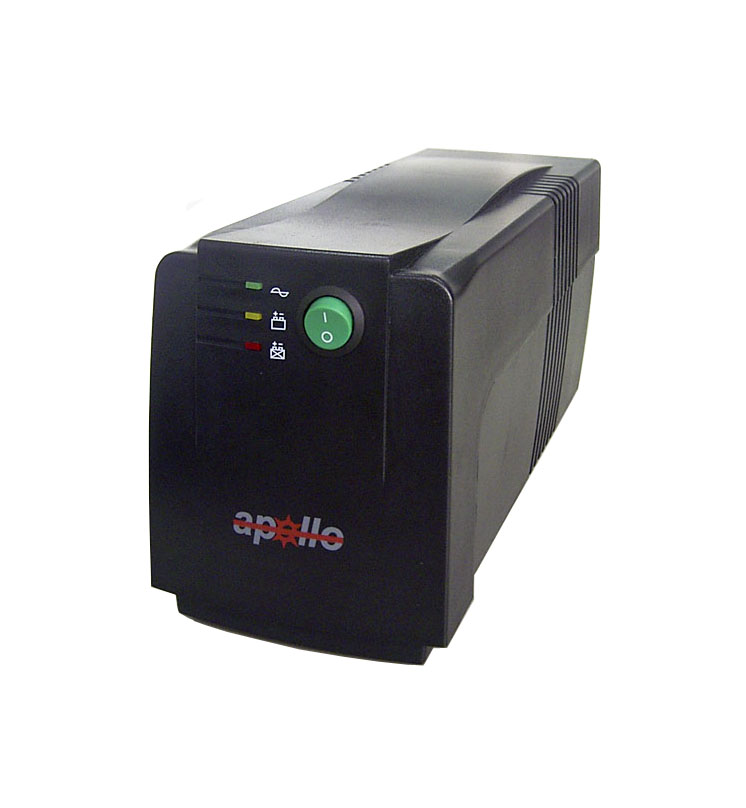

UPS A Series

 Model

1055A

1065A

1085A

 Input

 Voltage Window

 100/110/120/220/230/240VAC Nominal -25%+25%



 Frequency

 50Hz or 60Hz +/-5%

 Inv. O/P

 Waveform

 PWM Simulated Sine wave



 Frequency

 50Hz or 60Hz +/-1%



 Capacity

550VA

650VA

850VA



 Regulation

 +/-3%



 Transfer Time

 2ms typical; 5ms maximum

 Battery

 Types

 Lead-Acid maintenance-free



 DC Bus

12V/7AH

12V/7AH

12V/9AH



 Number

1 PCE

1 PCE

1 PCE



 Recharge Time

 Typically 8 hours to 90% charged



 Run Time

 8 minutes on full load connected

 Protection

 Over/Under Volt.

 Switch to Bat. O/P when Mains over regulation range



 Overload/Short

 Fuse & current limited for both mains and Battery modes



 Low Battery

 Two stages; no battery drain after cut off



 Surge

 Meets IEEE587 Cat. A



 Noise Filtering

 EMI/RFI full time suppression

 Mechanical

 Socket Type

 IEC, NEMA5-15R, German



 Socket No. (pcs)

 IEC*4, NEMA5-15R*6, German*2



 Dim (W*H*D)mm

 100*150*310



 Weight (kgs)

6.5

7

8



 Shipping Wt.

7

7.5

8.5

 Environment

 Ambient

 0-40 degree C, 0-90% non-condensing



 Audible

 Less than 35 dBA (1M distance)

 Warning

 LED on Front

 AC Normal: Green LED Steadily; Backup: Yellow LED        intermittently;

 Batterylow: Red Led light on

 Signals

 Beeping Alarm

 On Battery, Battery Low and Overload

 Communication Port

 DB9 or USB

 Tel/Fax/Modem Protection

 RJ11

 Cold Start

 It enables to activate UPS without Utility Power

*Specifications subject to change without prior notice
