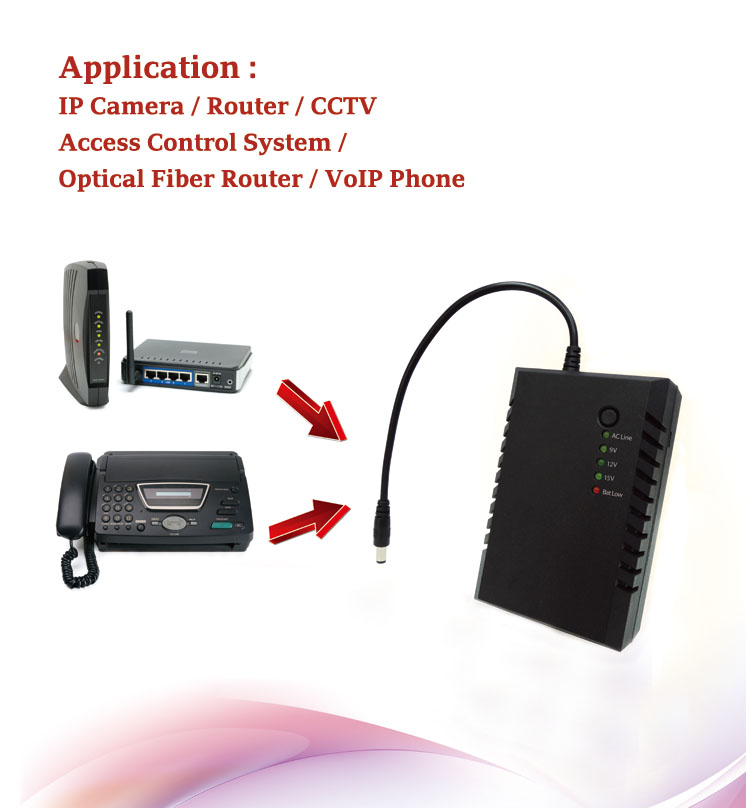

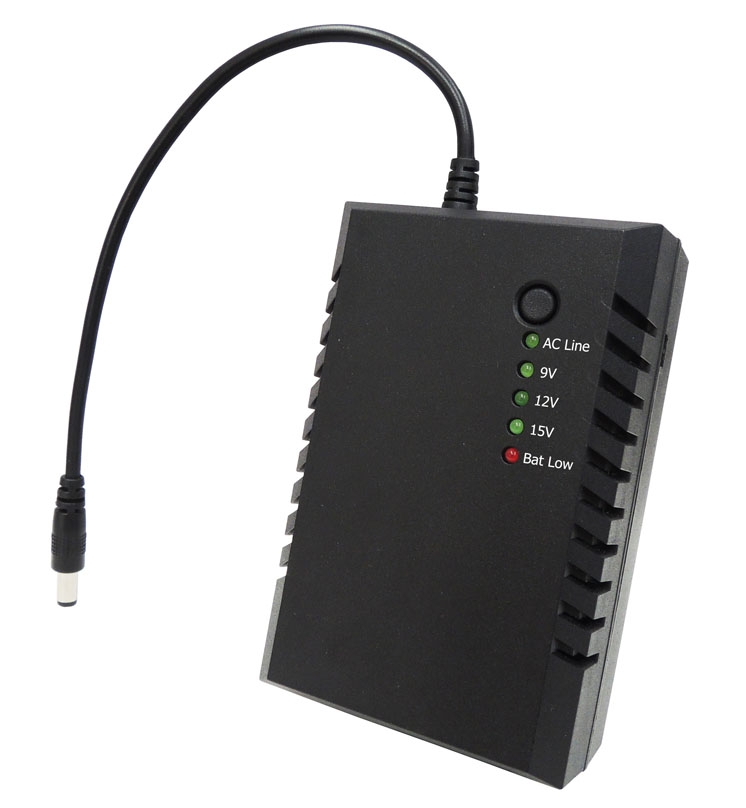

Adapter inside battery (UPS)

Model

AD10

Input

Voltage

AC 85~265Vac

Frequency

50/60Hz

Output

Voltage

5/9/12Vdc ±5%~10% selected

or

7/9/12Vdc ±5%~10% selected

Power rating

12W

Ripple

150mV

Battery

Type

Lithium-Polymer Battery

7.4V/2000mAh or 3.7V/4000mAh

Protection

Input

Fuse for overload & short circuit protection

Output

High performance controller

for over discharge, overload, short circuit protection

Battery

Battery protection IC for over charge, over discharge, overload, short circuit protection

Indicators

LED

Battery level x 3, battery life x 1

Cord

Input Cord

AC power cable (length: 300mm)

Output Cord

DC power cord : Jack 5.5mm x 2.1mm 20Awg (length: 300mm)

USB Charge Port

5V 1A USB port *1 (option)

Accessory

Connector

3 type of detachable DC connector for output cable (option)

(1)  F5.5x2.1mm/M5.5x2.5mm

(2)  F5.5x2.1mm/M4.8x1.7mm

(3)  F5.5x2.1mm/M3.5x1.35mm

Dimension

LxWxH (mm)

108mm x 70mm x 42mm
