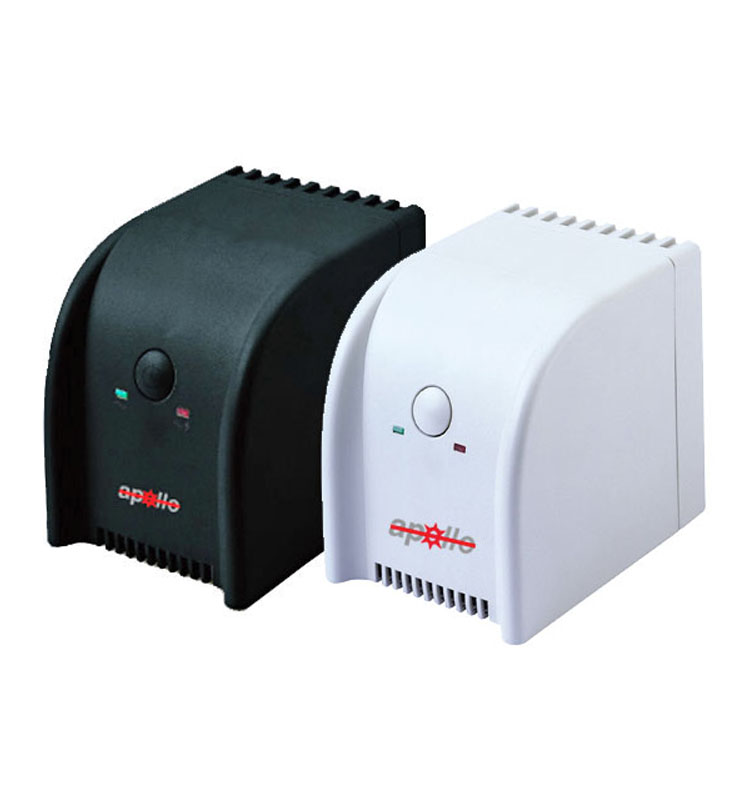

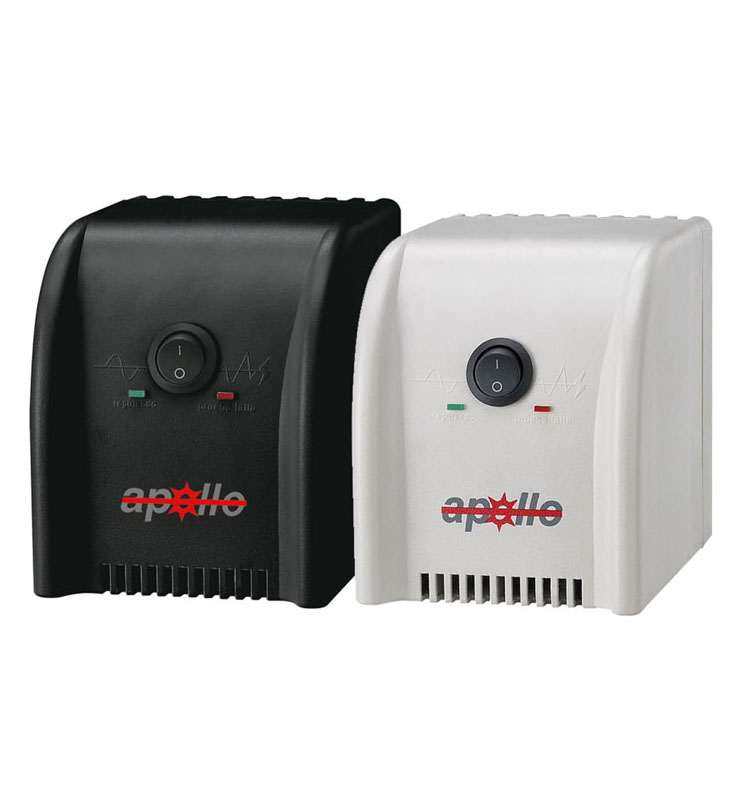

AVR M Series

Model

AVR 600M

AVR 1000M

Capacity

600VA

1000VA

AC Input

Voltage

110VAC (75~145VAC) or 220VAC (145~280VAC)

Frequency

47Hz ~ 63 Hz

Power Factor

0.95 ~ 1

AC Output

Regulation

4%, 8%, 10%, (Input Range)

Response Time

1Cycle

Distortion

No distortion, same as input waveform

Efficiency

97%

Protection

Overload & Short

Output cut off, Fuse

Surge

Varistor clamping 125 joules (10/1000μs), 4500A (8/20μs)

High / Low Voltage

High / Low voltage cut-off protection

Soft Start

Transferring time in 3~5 seconds delay

Internet

RJ11 for fax/modem protection

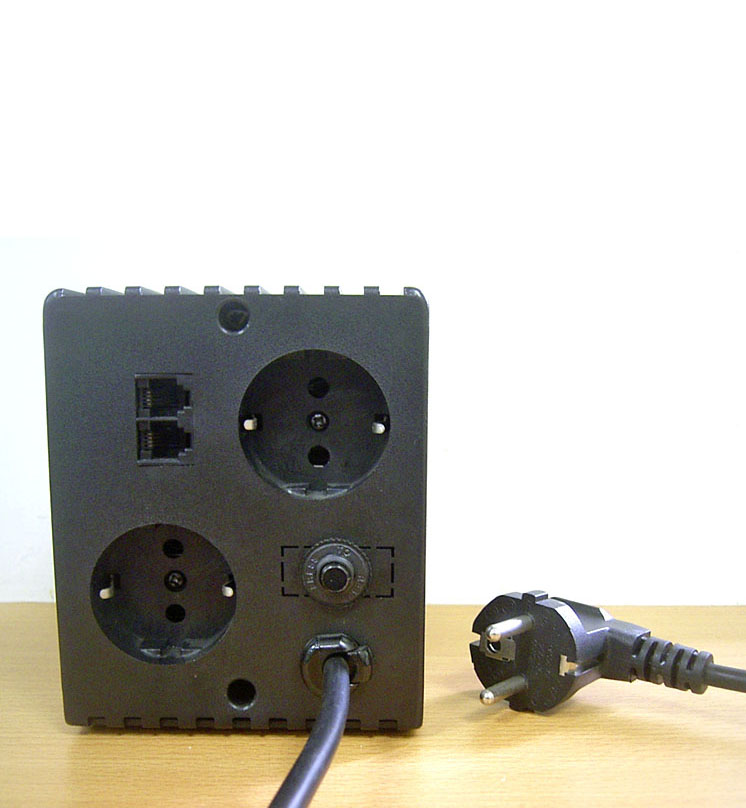

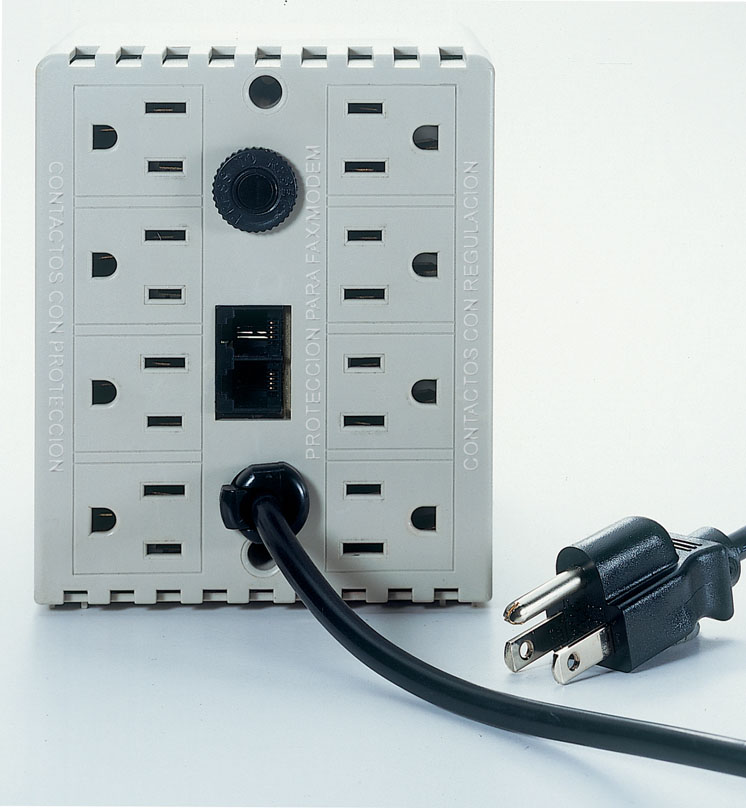

Output Socket

NEMA5-15R ×8, German*2or Multiple-Outlet ×4

Operating Temperature

0 ~ 40℃

Dimension (L×W×H)

130×99×122mm

Net Weight (kgs)

1.6

2
