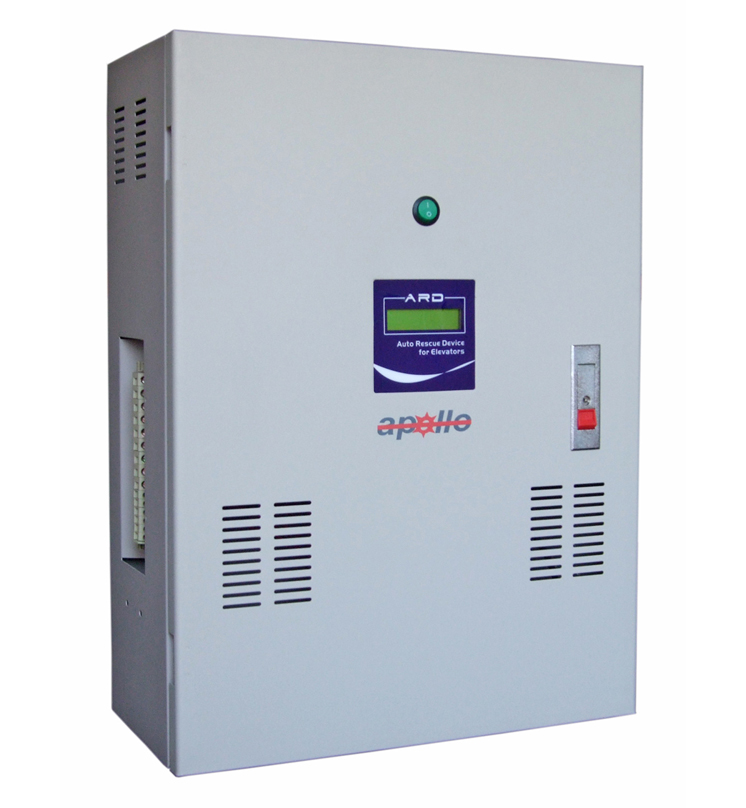

ARD

Model

ARD-10

ARD-15

ARD-25

ARD-30

ARD-39

ARD-45

Capacity

7.5HP

11HP

22HP

26HP

32HP

35HP

AC Input

415V / 220VAC + 15% - 20% Three Phase Input. 50/60Hz ± 10%

DC Voltage

48Vdc

60Vdc

72Vdc

84Vdc

96Vdc

120Vdc

Charger Type

Controlled Rectifier CVCC

Charging Time

10 Hours for 90% of Full Battery Capacity

Inverter

Technology

IGBT based PWM Sine Wave

Output Voltage

400V / 415V / 200Vac Three Phase 50/60Hz ± 0.1Hz

Inverter Efficiency

85%

Overload

105% continuous

Harmonic Distortion

<3% on Linear load

Crest Factor

4:1

Power Factor

0.8

Phase Displacement

120° ± 1°

Dimension (LxWxD)

530x400x195mm

LCD Display

AC normal, Inverter normal,Batter low, Overload

Protection

Output Overload & Short circuit

DC Under & Over Voltage
